time:2017-06-06 15:59:00 browse:5701次

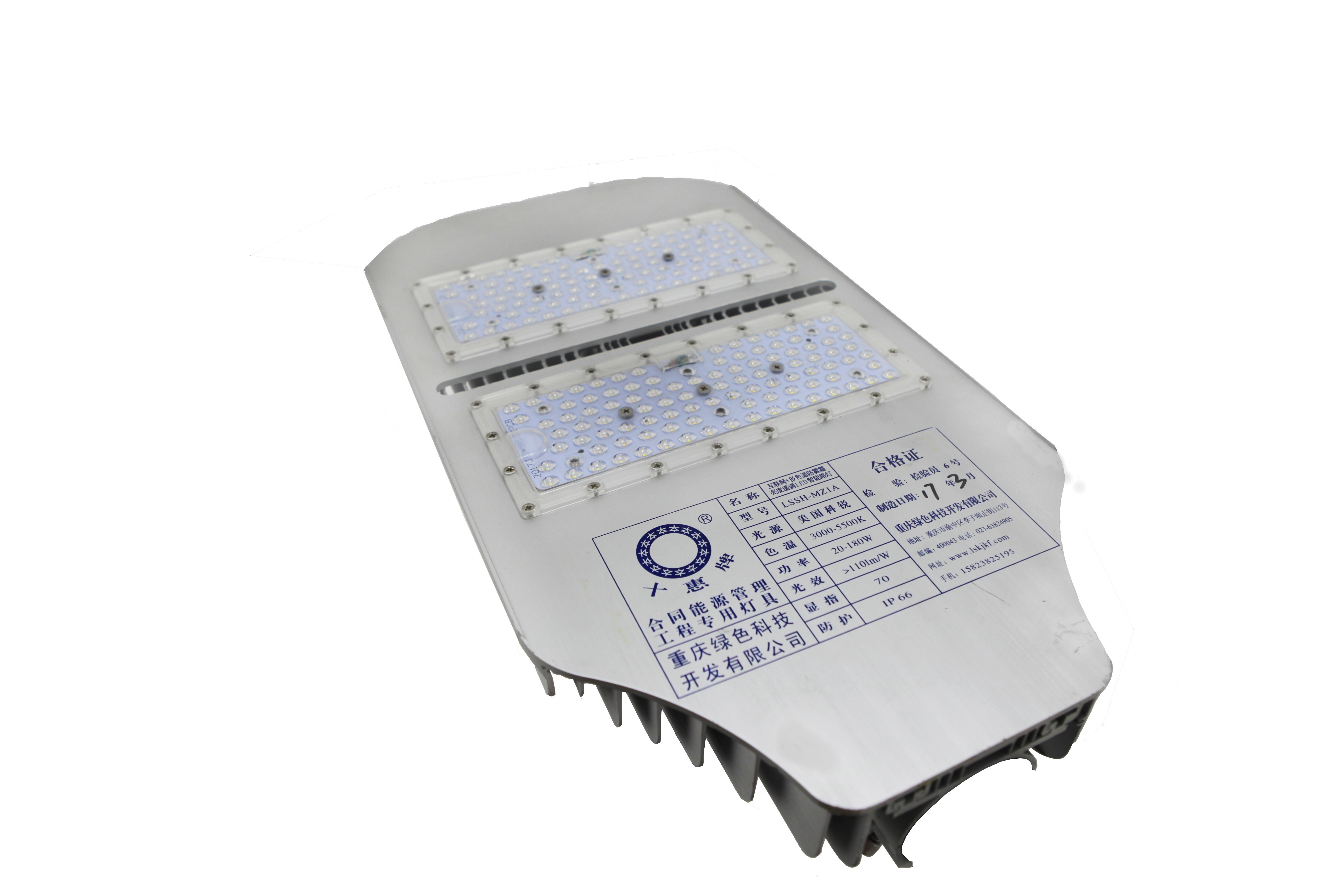

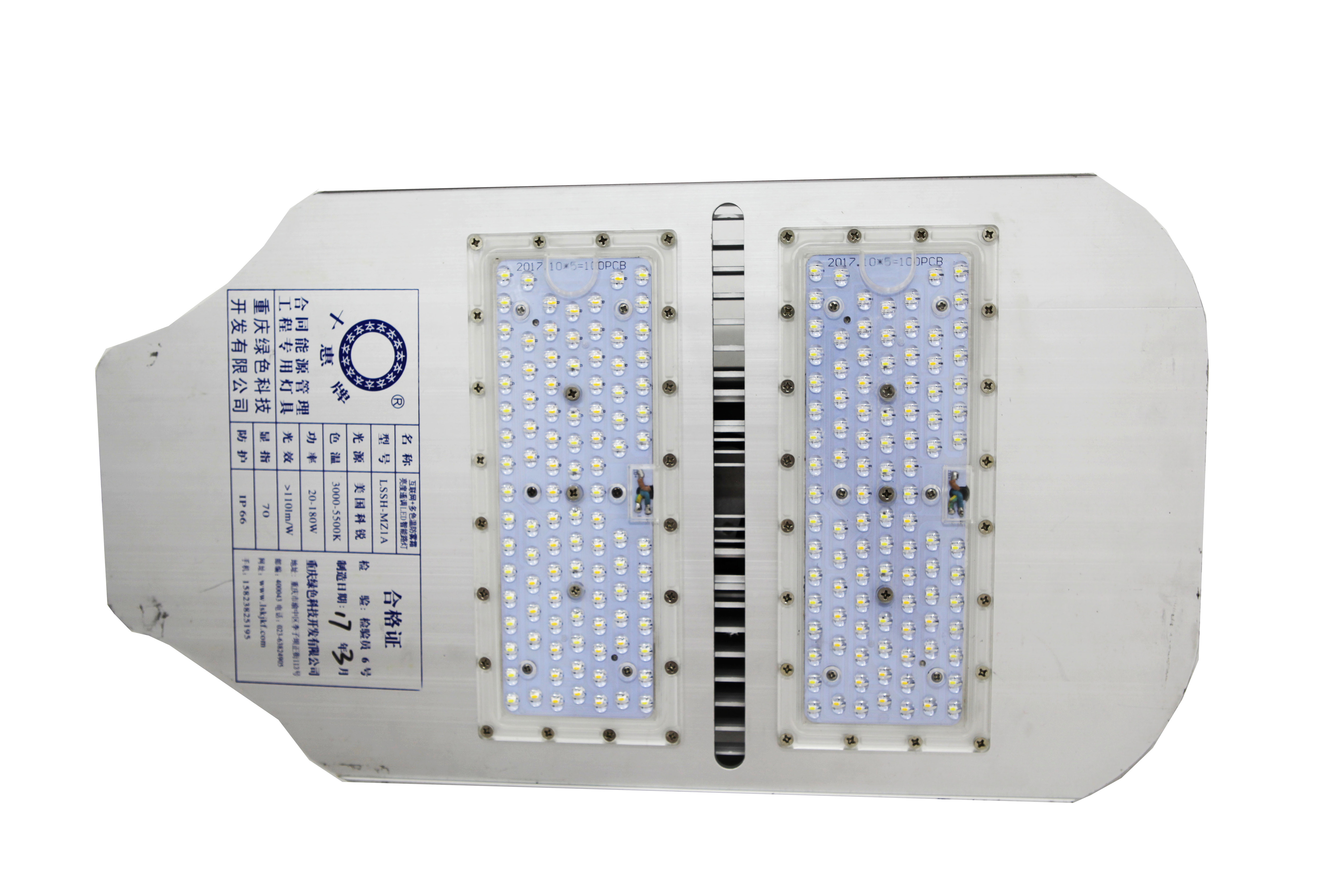

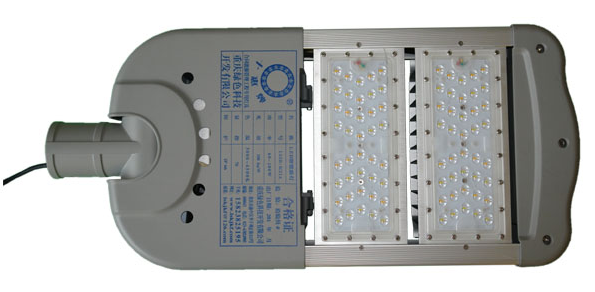

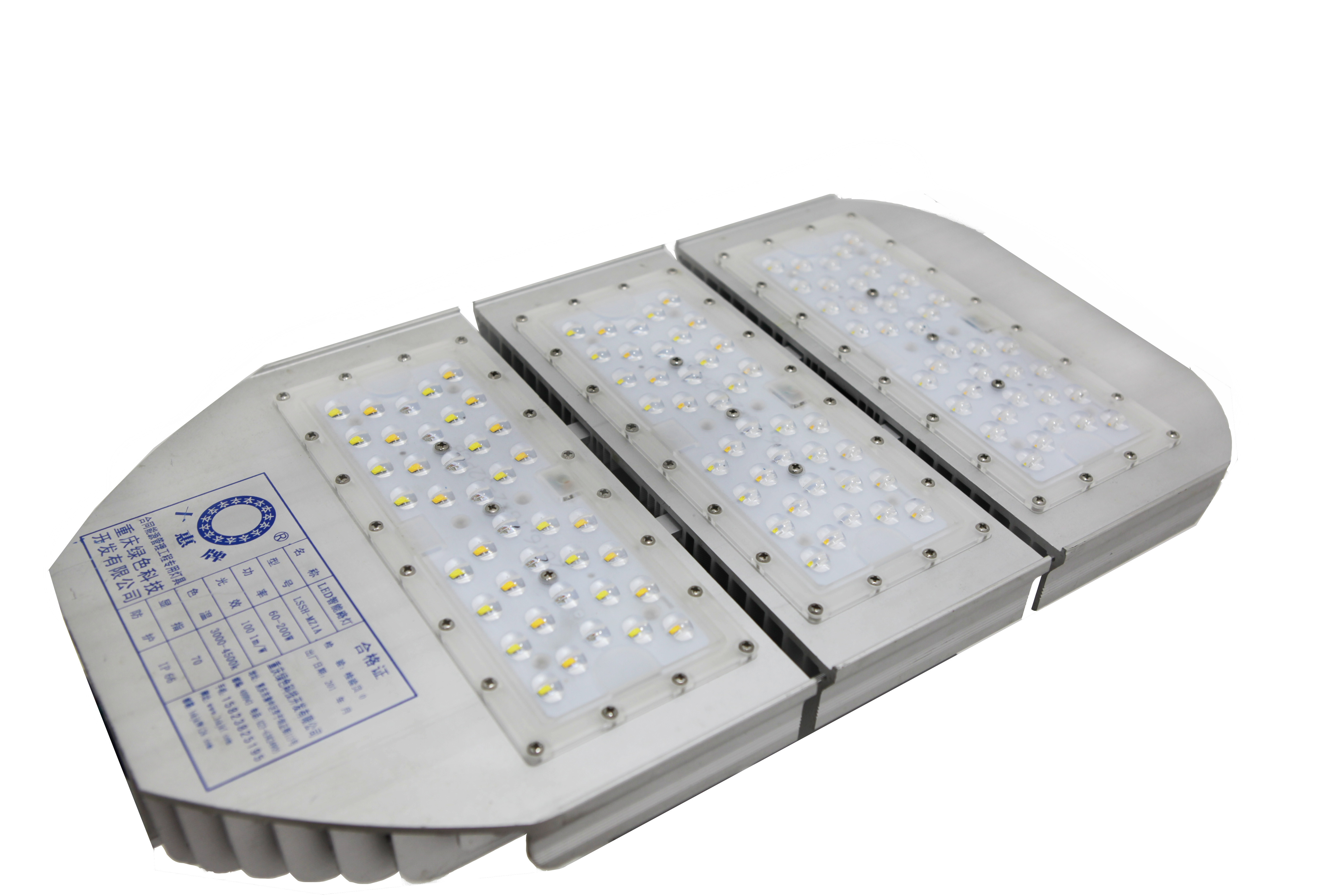

"Ten Hui card" Internet plus anti fog and haze, brightness of color temperature remote intelligent remote control of a new generation of LED street lights with high definition (the main road was 70), good uniformity, high light efficiency, the lamp adopts imported CREE power source, song sheng. The performance of this product are leading the national similar products, and the use of independent intellectual property rights of patent technology "Internet plus multi color LED lights, tunnel lights and six remote control system (ZL201520493805.4)". The patent technology has been found by science and technology novelty retrieval report (Report Number: J201508016831), proved to be "China created" LED street lighting applications, intelligent manufacturing, unique advanced technology. The product and technology has been included in the "2015 annual scientific and technological achievements into the project" Chongqing City SME (small enterprises in Yuzhong 2015, No. 188) has been included in the "2016 Chongqing Internet plus pilot project", "2016 year Chongqing city technology innovation project", "guiding Chongqing focus on encouraging the procurement of products catalog [2012 version]", the "Chongqing high-tech products", "Chongqing municipal industry new technology certification", and for which approved the establishment of the Chongqing Municipal Engineering Research Center [LED intelligent control technology development and reform Chongqing 2015 No. 1865].
The main specifications, models and technical parameters are listed in the following table:
產品規格 |
60W |
100W |
120W |
150W |
||
產品型號 |
LSSH-DSWLD60 |
LSSH-DSWLD100 |
LSSH-DSWLD120 |
LSSH-DSWLD150 |
||
輸入電壓 |
AC220V/50Hz |
|||||
LED光效 |
>120 lm/W |
|||||
燈具光效 |
>100lm/W |
|||||
相關色溫 |
3000K—5700K(無極調色溫) |
|||||
顯色指數 |
>70 |
|||||
功率因數 |
>95% |
|||||
電源效率 |
>88% |
>90% |
||||
防護等級 |
IP 66 |
|||||
工作環境 |
-30℃--+55℃ |
|||||
使用壽命 |
6萬小時 |
|||||
外形尺寸 |
600*310*150(mm) |
780*310*150(mm) |
780*310*150(mm) |
780*310*150(mm) |
||
燈具重量 |
5.5(kg) |
6.8(kg) |
6.8(kg) |
7.8(kg) |
||
適用場所 |
適用于公路、道路、高速公路照明 |
